GP35 End-Window G-M Detector

End Window G-M Detector Assembly

GP35 assembly with end window detector, 10 position sample stand and tray

The GP35, complete GM detector assembly includes our GM35, end-window, Geiger-Mueller detector, a 3 ft BNC cable, a 10 position sample stand, and sample tray.

GM35: 35 mm end window GM tube
GMS35: 10 position sample stand
GMT01: Sample tray
BNC3: RG-58 Cable for GM – BNC/BNC connectors, length: 3 ft

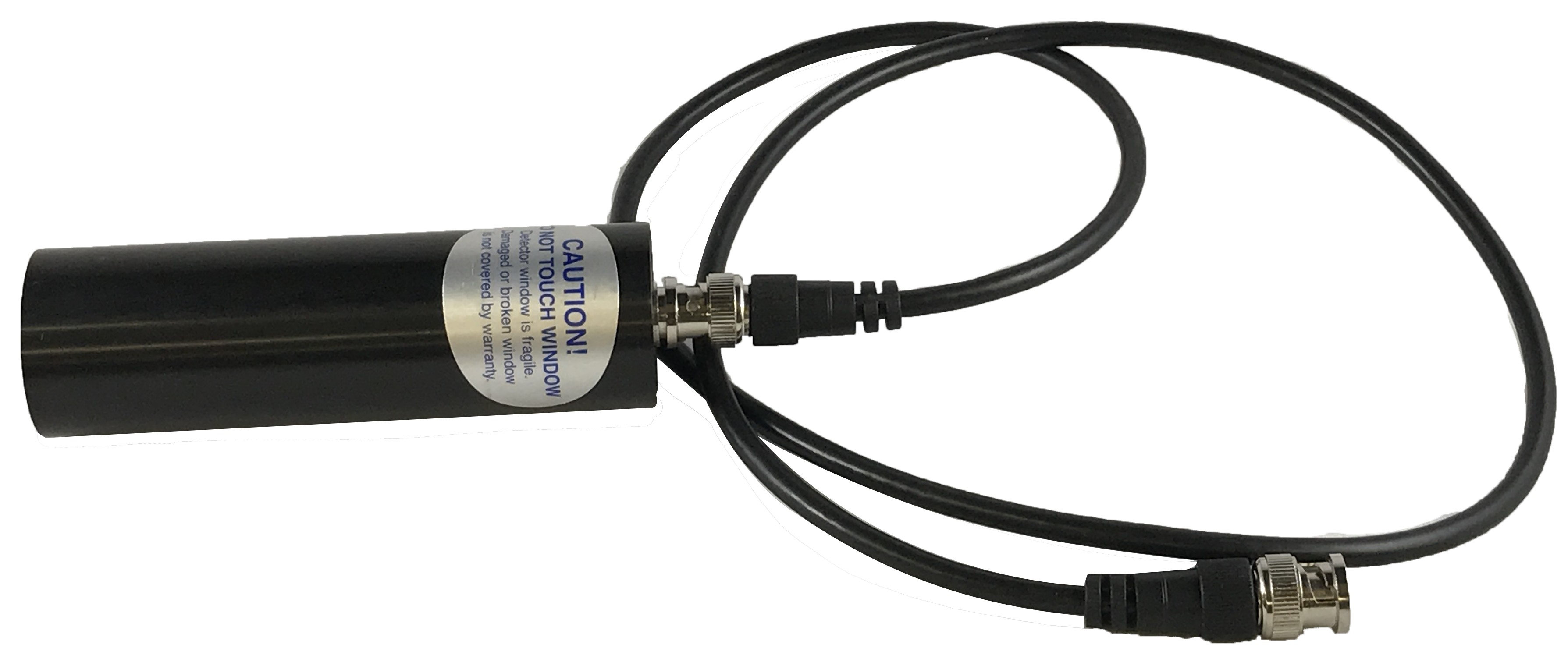

GM35 end window GM radiation detector by spectrum techniques

GM35, end-window, GM Detector Specifications

Base: BNC connector
Cathode Wall Material: 446 Stainless Steel
Cathode Wall Thickness: 0.6 in. (1.52 mm)
Cathode Wall O.D.: 1.25 in. (31.75 mm)
Cathode Wall Length: 2.47 in. (62.8 mm)
Gas filling: Neon & Halogen
Window: Mica, 1.8 – 2.2 mg/cm2
Window Diameter: 1.21 in. (30.7 mm)
Max Temperature: +50°C
Maximum Altitude: 8,000 ft
Background:50 cpm (V = 900)
Dead time: 100 μsec (V = 900)

GM Stand with Sample Tray Specifications

GM Stand Material: Rugged Plastic
Tray positions: 10
Spacing: 1 cm apart
Sample Tray Material: Lexan
