AMP-100 Area Monitor and Ratemeter

For Medium Range Gamma Radiation

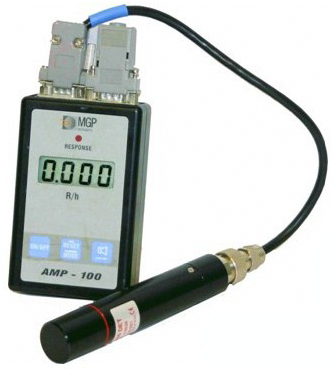

Mirion AMP-100

The AMP-100 provides real-time remote radiological monitoring. Local readout of hand-held meter allows for use as a portable survey instrument. This area monitor is designed specifically to be used in medium dose rate fields. The AMP-100 features linear response from 0.5 mR/h to 1000 mR/h (0.5 mSv/hr to 10 Sv/hr)


Radiological Characteristics
Detector: energy compensated GM-tube 5zp-1301
Detection Range: (± 10%): 0.005 R/h to 1 000 R/h
Energy Range: sensitivity: 330 cps per R/h
Detector life time: 20 R/h field for six months
Electrical Characteristics
Power supply: 9 Volts (supplied by a 9 Volt battery located in the meter case)
Optional: 9 Volt AC adapter available
Battery life: approximately 50 hours of continuous use
Mechanical Characteristics
Meter dimensions: (w x h x d): 6.8 x 11.9 x 1.2 cm
Probe head length: 16.5 cm (6.5 in)
Diameter: 3.3 cm (1.3 in)
Standard cable length: 7.6 m (25 ft)
Maximum cable length: 106 m (350 ft)
Environmental Characteristics
Temperature: -10° to 50°C (15 to 120° F )
Relative humidity: 10 to 95% RH (non-condensing)

AMP-100 Area Monitor
